WANLIN-010 OCPP Smart Socket - 10-Socket Wall-Mounted AC Charging Station
WANLIN-010 OCPP 1.6J smart charging hub: 10 independent 220V/1000W sockets, 10kW total, 4/3/3 phase balancing, LED ring display, per-socket metering. Factory-direct OCPP charging station with CSMS integration.
Products and Services
Review relevant products, system options, application guidance, project support, and pre-sales or after-sales services.
Information for Selection
Compare the application scenario, functional requirements, installation environment, interfaces, communication method, quantity, and project schedule.
How Information Is Verified
Confirm model numbers, technical parameters, certifications, delivery terms, and compatibility against current product documents and agreed project requirements.
Details
Product Decision Snapshot
WANLIN-010 OCPP 1.6J smart charging hub: 10 independent 220V/1000W sockets, 10kW total, 4/3/3 phase balancing, LED ring display, per-socket metering. Factory-direct OCPP charging station with CSMS integration.

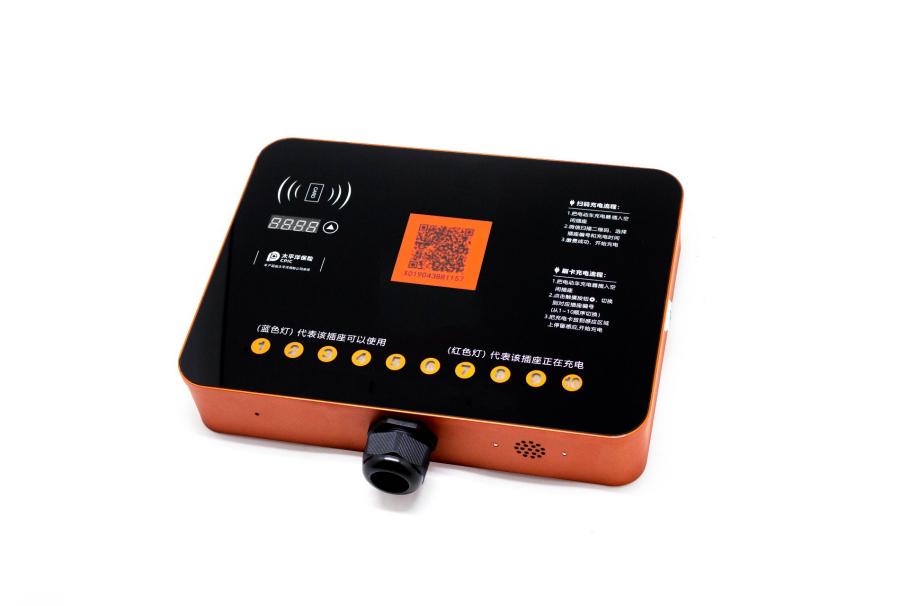

WANLIN-010 OCPP Smart Socket – 10-Socket Wall-Mounted AC Charging Station for Two-Wheelers
WANLIN-010 is a high-density OCPP 1.6J smart charging station (OCPP 2.0.1 compatible) with ten independently controlled and metered AC 220V sockets for e-bikes and e-scooters. With a 10 kW total capacity, three-phase load distribution (4/3/3 across L1/L2/L3), an LED ring status display and voice prompts, it turns any bike shed wall into a full managed charging hub. Every socket is reported to your CSMS as an individual OCPP connector (connectorId 1–10) with per-socket metering, so billing, smart-charging profiles and remote control work at socket granularity.
Key Specifications
| Parameter | Value |
|---|---|
| Rated input | AC 220V, 50Hz ±5%, single-phase three-wire |
| Max total power | 10 kW (all ten sockets fully loaded) |
| Output per socket | AC 220V, 0–1000W adjustable (factory default 800W), max 4.6A per socket |
| Sockets | 10 × independently controlled and metered outputs |
| Phase distribution | 4/3/3 — sockets 1–4 on L1, 5–7 on L2, 8–10 on L3 |
| OCPP connector model | connectorId 1–10 per socket, connectorId 0 = station aggregate |
| Communication | OCPP 1.6J over 4G Cat.1, compatible with OCPP 2.0.1 |
| Energy metering | Class 2 per socket, 0.01 kWh resolution, reports 0.001 kWh |
| Leakage protection | 100 mA station-level + 30 mA per socket (graded protection) |
| Standby power | ≤ 6 W (including display and communication) |
| Display | LED ring per socket (blue = available, red = charging) + digital display |
| User authentication | QR scan (WeChat / Alipay), 13.56 MHz IC card, NFC |
| Insulation resistance | ≥ 10 MΩ (500 V megger) |
OCPP 1.6J Protocol Support
| OCPP Profile | Support | Notes |
|---|---|---|
| Core | Full | Multi-socket concurrent session management |
| Firmware Management | Full | Segmented OTA firmware download |
| Local Authorization List Management | Full | 500-card local whitelist |
| Reservation | Full | Reservation per connectorId |
| Smart Charging | Partial | TxProfile and ChargePointMaxProfile; per-socket power scheduling |
| Remote Trigger | Full | Six triggerable message types |
The OCPP connector mapping follows the physical socket numbering and phase order: connectorId 1–10 map to sockets 1–10 (1–4 on L1, 5–7 on L2, 8–10 on L3). StatusNotification is sent per connector; a single faulty socket is reported as Faulted without affecting the availability of the remaining nine.
Smart Features
- Ten independent circuits — per-socket relay, metering and LED ring.
- Scan-to-charge and card charging — WeChat/Alipay QR, IC card and NFC.
- Voice prompts and ring display — riders see socket availability at a glance.
- Auto stop on full — 5-minute low-current detection ends orders automatically.
- Graded leakage protection — 100 mA station-level plus 30 mA per socket.
- Smart charging coordination — local strategy cooperates with CSMS TxProfile scheduling to balance the 4/3/3 phase loads.
- Offline strategy with data back-fill — sessions continue offline and records sync after reconnect.
Typical Applications
- Large residential bike sheds and community charging hubs
- Campus and factory non-motorized vehicle depots
- Logistics and delivery stations with high rider turnover
- Commercial parking operators adding two-wheeler AC charging revenue
Request a quotation: contact Wanlin for factory-direct pricing on the WANLIN-010 ten-socket OCPP smart charging station, OEM/ODM options and worldwide shipping. CSMS integration and pilot-project support included.
