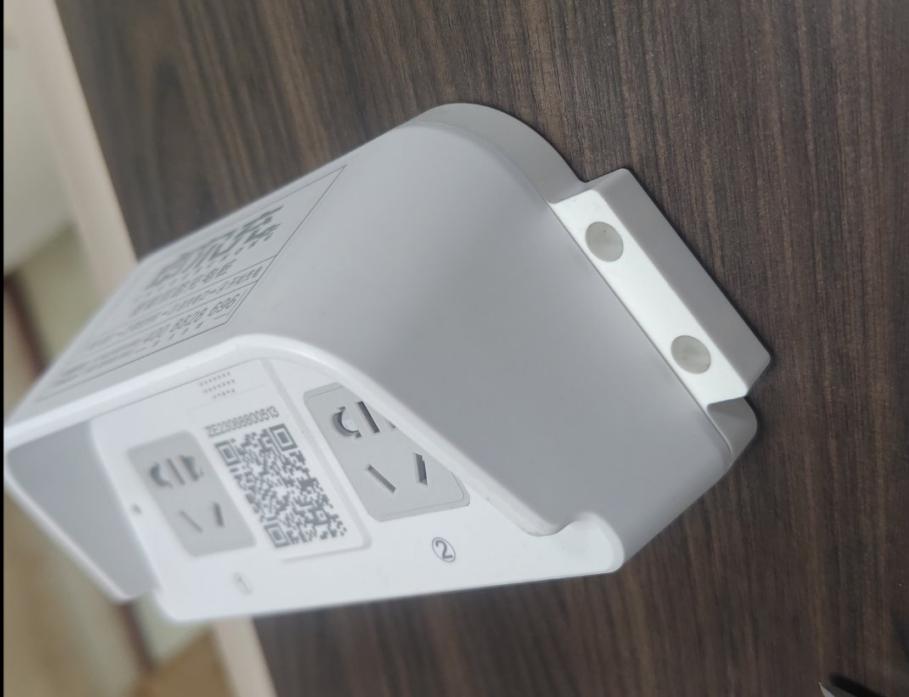

WANLIN-002 OCPP Smart Socket – 2-Socket Wall-Mounted AC Charging Station for Two-Wheelers
WANLIN-002 is a wall-mounted OCPP 1.6J smart socket (OCPP 2.0.1 compatible) designed for e-bike and e-scooter charging in residential communities, campuses, apartments and factory dormitories. Each of its two independent AC 220V sockets delivers 0–1000W adjustable output with per-socket metering, per-socket status LEDs and per-socket OCPP connector reporting (connectorId 1 and 2). Riders simply scan the QR code or tap an RFID card to charge — no app download required — while operators manage pricing, sessions, firmware and billing remotely over 4G Cat.1 through any standard OCPP CSMS platform.
Key Specifications
| Parameter | Value |
|---|---|
| Rated input | AC 220V ±10%, 50Hz ±5%, single phase + PE |
| Max total input power | 2.2 kW (both sockets fully loaded) |
| Output per socket | AC 220V, 0–1000W adjustable (factory default 800W), max 4.6A per socket |
| Current adjustment step | 0.5A (configurable via OCPP/CSMS) |
| Sockets | 2 × GB standard 5-hole sockets, 10A each, independently controlled and metered |
| OCPP connector model | connectorId 1 = left socket, connectorId 2 = right socket, connectorId 0 = station aggregate |
| Communication | OCPP 1.6J over 4G Cat.1 (full Netcom), compatible with OCPP 2.0.1 |
| Energy metering | Class 2 accuracy (Class 1.0 on -M model), 0.01 kWh resolution, reports 0.001 kWh |
| Leakage protection | 30 mA, response ≤ 0.1 s (with upstream RCD) |
| Standby power | ≤ 2 W |
| Insulation resistance | ≥ 10 MΩ (500 V megger) |
| User authentication | QR scan (WeChat / Alipay mini-program), 13.56 MHz IC card, NFC (0–30 mm) |
| Mounting | Wall-mounted, 86-type junction box or two expansion bolts |
OCPP 1.6J Protocol Support
WANLIN-002 speaks native OCPP 1.6J (JSON over WebSocket) and is compatible with OCPP 2.0.1, so it connects directly to mainstream CSMS/charging SaaS platforms without proprietary gateways.
| OCPP Profile | Support | Notes |
|---|---|---|
| Core | Full | Complete charging session lifecycle |
| Firmware Management | Full | Segmented firmware download and OTA update |
| Local Authorization List Management | Full | 500-card local whitelist |
| Reservation | Full | Reservation per connectorId |
| Smart Charging | Partial | TxProfile and ChargePointMaxProfile supported |
| Remote Trigger | Full | Six triggerable message types |
A full session uses eight key OCPP messages (Authorize, StartTransaction, MeterValues, StopTransaction and related calls). StatusNotification is reported per connectorId — a fault on one socket reports that socket as Faulted while the station and the other socket remain Available.
Smart Features
- Independent dual circuits — separate relays, metering and status LEDs; one socket fault never affects the other.
- Scan-to-charge — WeChat/Alipay QR, choose duration or amount, no app install.
- RFID/NFC card charging — ideal for elderly users and property-issued cards.
- Auto stop on full — ends the order when charging current stays below threshold for 5 minutes.
- Resume after outage — automatically continues unfinished orders when power returns.
- Remote operations — remote start/stop, tariff configuration, firmware upgrade, metering data export via OCPP.
- Offline resilience — local authorization and session records are back-filled to the CSMS after reconnection.
Seven-Layer Safety Protection
- Overload protection (per-socket power limit)
- Over-current protection (4.6 A per socket)
- Short-circuit protection
- Leakage protection (30 mA, ≤0.1 s)
- Over-temperature protection
- No-load detection (auto cut-off)
- Battery abnormality detection
Model Variants
| Model | Configuration |
|---|---|
| WANLIN-002 | Standard, 2 sockets, IP54, indoor/covered bike sheds |
| WANLIN-002-W | Enhanced waterproof, IP65, rain hood and potted terminals for outdoor use |
| WANLIN-002-M | Enhanced metering, Class 1.0, for property revenue-sharing settlement |
| WANLIN-002-N | Card-only model without QR code, local whitelist charging |
Typical Applications
- Residential communities: one unit per 2 parking spots, sharing the shed lighting circuit
- Apartment and dormitory buildings: 1–2 units per entrance
- Campus and factory non-motorized sheds: parallel installation with a unified scan entry
- Street shops and delivery stations: rider charging hubs with auto full-stop enabled
Request a quotation: contact Wanlin for factory-direct pricing, OEM/ODM customization and global shipping of the WANLIN-002 OCPP smart socket. MOQ-friendly for pilot projects, CSMS integration support included.
